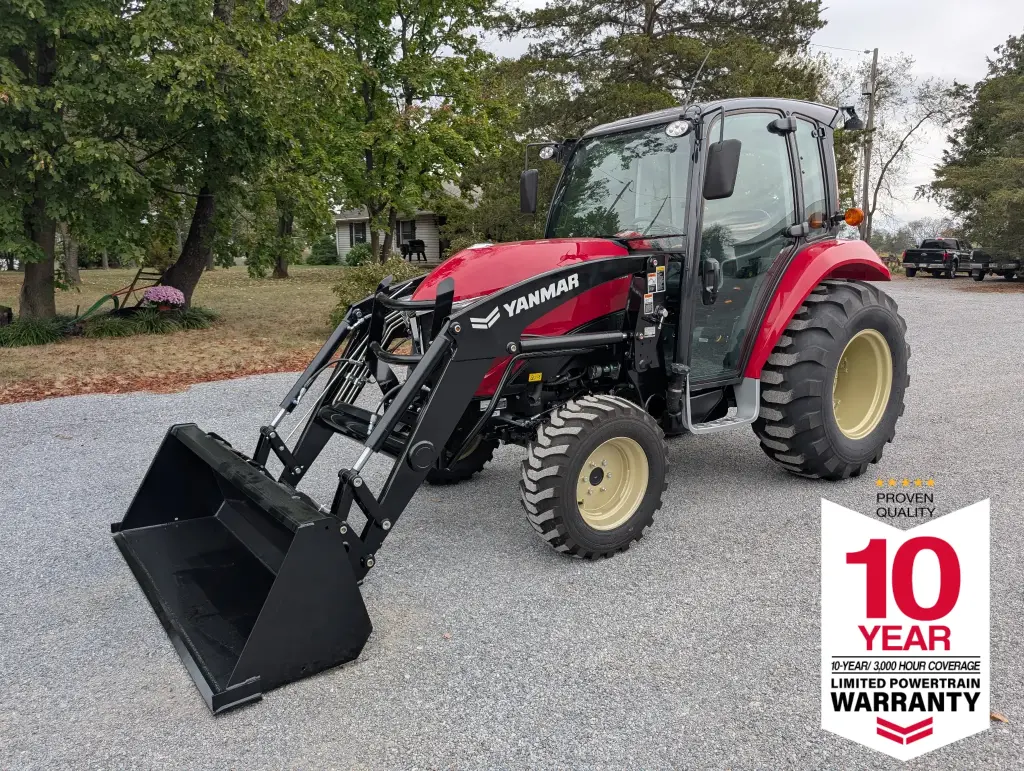

The most capable tractor Yanmar builds
The YT359C combines the three things that sit at the top of every other model's option list: the largest engine in the range, the i-HMT stepless transmission, and a factory cab with heat and air conditioning. Its 4TNV98C four-cylinder Tier 4 diesel displaces 202.5 cubic inches and makes 58.9 horsepower, with 52 HP at the PTO at working speed.
At 4,442 lb with the cab and full fluids, it has the weight to put that power on the ground.
What the i-HMT does differently
Yanmar's Integrated Hydro Mechanical Transmission splits power between a mechanical path and a hydraulic one. You drive it like a hydrostatic, stepless and clutch-free, but the mechanical share means a higher power transfer ratio and lower fuel consumption than a pure hydrostatic of the same size. Speed is repeatable, shifting is clutch-less, and you can bring the tractor to a stop without a clutch at all.
Three variable-speed ranges cover 0 to 18 mph in both directions.
Working in the cab
The cab is Yanmar-designed with heat and air conditioning rather than a third-party retrofit, so the controls, sight lines, and sealing were laid out together. Inside, the electronic package includes anti-stall, electronic cruise control, auto throttle, an A/B mode for storing two engine and ground speed settings, and a throttle boost button, all reporting to a large LCD display. Loader controls and the third-function switch sit on the joystick.
The loader
The YL610 lifts 2,500 lb at the pivot pin to 113 inches, breaking out at 3,969 lb at the pins. The 72-inch bucket carries 10.9 cubic feet with 88 inches of dump clearance, which clears the side of a dump trailer without a ramp of guesswork. A grille guard is standard.
Hitch and hydraulics
The Category 1 three-point hitch lifts 3,307 lb standard and 2,756 lb at 24 inches behind. Implement hydraulics flow 9.4 GPM with 5.3 GPM dedicated to fully hydraulic power steering, and a rear remote is standard.
Yanmar YT359C specifications
- Engine: Yanmar 4TNV98C Tier 4, 4-cylinder liquid-cooled diesel, 202.5 cu in
- Power: 58.9 HP gross at 2,500 RPM, 52.0 HP PTO at working speed
- Transmission: i-HMT, 3 variable-speed ranges, power-shift reverser
- Travel speed: 0 to 18 mph forward and reverse
- Cab: Yanmar factory cab with heat and air conditioning
- PTO: Rear 540 RPM
- Three-point hitch: Category 1, 3,307 lb standard, 2,756 lb at 24 in
- Loader (YL610): 2,500 lb lift at pivot pin, 113 in lift height, 72 in bucket, 10.9 cu ft
- Hydraulics: 9.4 GPM implement, 5.3 GPM steering
- Electronics: Anti-stall, cruise control, auto throttle, A/B mode, throttle boost, LCD display
- Fuel capacity: 12.7 gallons
- Ground clearance: 12.8 in with R4 tires. Wheelbase: 77.4 in
- Weight: 4,442 lb with cab, R4 tires, full fluids
- Standard: Rear remote, 12V outlet, grille guard
What will it cost per month?
The payment calculator on this page gives a quick monthly estimate, and building yours shows live payment options across terms and down payments. Submitting sends a quote request, and we'll follow up with your pricing. Payment figures are estimates, subject to credit approval.
Buying a YT359C in central Pennsylvania
Green Spring Tractor is a Yanmar dealer at 846 Greenspring Road in Newville, Pennsylvania, serving Cumberland County and the surrounding area. Every new Yanmar tractor is assembled in Adairsville, Georgia, with parts shipped from that same facility. Coverage runs 24 months or 2,000 hours on the machine and 10 years or 3,000 hours on the powertrain for non-commercial use.
Call 717-776-4040. This is a machine worth an hour of your time before you buy, and we'd rather you spent it here than regretted the decision later.
Already own one? Browse genuine parts for the Yanmar YT359C: filters, belts, cab filters, and maintenance kits cross-referenced to your model.
Specifications
| Tire Type | R1 Ag, R3 Turf, R4 Industrial |
