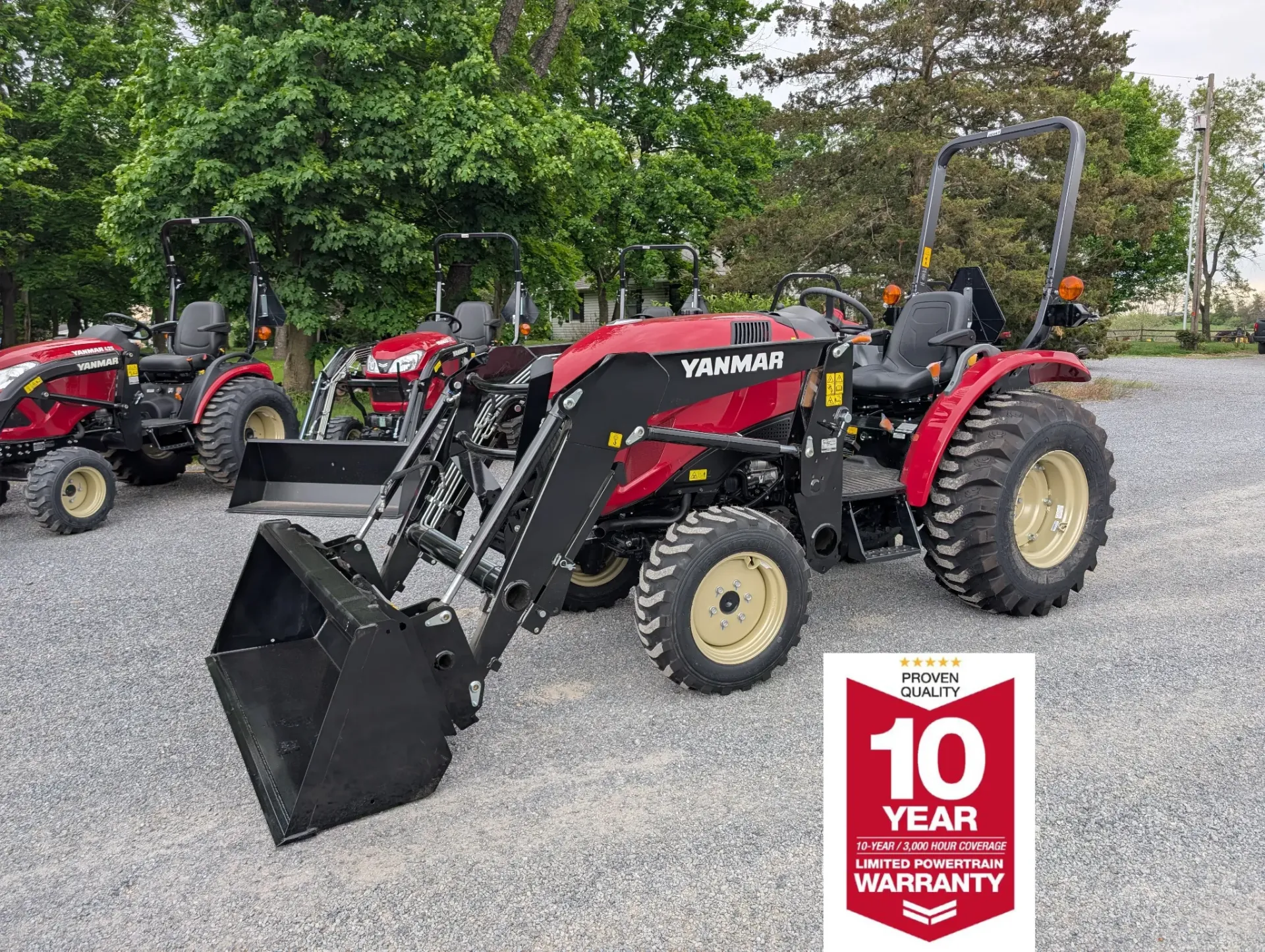

The most tractor in the YM2 Series
The YM238 is the top of Yanmar's YM2 range at 38.2 horsepower gross with 31.9 HP at the PTO. It keeps everything that makes the series work, including the 8x8 Synchronized Reverser Transmission with its column-mounted forward/reverse shuttle, and adds the headroom you need when implements get wide and ground gets heavy.
It's also the only model in the series available with a turbo.
What the turbo actually changes
Yanmar offers the YM238 in a turbocharged version, and the gains are the ones you'd expect from forced induction on a small diesel: more power and more torque from the same displacement, better fuel efficiency, lower emissions, less noise, and noticeably better performance at altitude. If you're working sustained loads rather than short bursts, it's the version to ask about.
What it lifts and pulls
The YL405 loader lifts 1,500 lb at the pivot pin to 88.3 inches with 2,500 lb of breakout force, the same as the rest of the series. The extra engine horsepower shows up in how quickly it cycles under load rather than in the lift rating.
The Category 1 three-point hitch handles 2,205 lb standard and 1,609 lb at 24 inches behind the lift point. Implement hydraulics flow 6.8 GPM.
Setting it up your way
Canopy kit, deluxe suspension seat, LED work light, backhoe, single-spool rear remote, and a third-function kit are all on the options list. With 31.9 PTO horsepower on tap, this is the model where a backhoe attachment makes the most sense.
Yanmar YM238 specifications
- Engine: Yanmar diesel, 38.2 HP gross at 2,600 RPM. Turbo version available
- PTO power: 31.9 HP, rear PTO 540 RPM at 2,360 engine RPM
- Transmission: Synchronized Reverser Transmission, 8 forward / 8 reverse, dry single-plate clutch
- Drive: Selectable 2WD/4WD, rear differential lock with foot-pedal engagement
- Loader (YL405): 1,500 lb lift at pivot pin, 2,500 lb breakout, 88.3 in lift height
- Three-point hitch: Category 1, 2,205 lb standard, 1,609 lb at 24 in
- Hydraulics: 6.8 GPM implement, 4.1 GPM steering. Remote valve and 3rd function optional
- Fuel capacity: 10.5 gallons
- Ground clearance: 10.6 in
- Weight: 2,866 lb
- Ideal acreage: 25 to 45
What will it cost per month?
The payment calculator on this page gives a quick monthly estimate, and building yours shows live payment options across terms and down payments. Submitting sends a quote request, and we'll follow up with your pricing. Payment figures are estimates, subject to credit approval.
Buying a YM238 in central Pennsylvania
Green Spring Tractor is a Yanmar dealer at 846 Greenspring Road in Newville, Pennsylvania, serving Cumberland County and the surrounding area. Every new Yanmar tractor is assembled in Adairsville, Georgia, with parts shipped from that same facility. Coverage runs 24 months or 2,000 hours on the machine and 10 years or 3,000 hours on the powertrain for non-commercial use.
Call 717-776-4040 to ask about turbo availability and current build times.
Already own one? Browse genuine parts for the Yanmar YM238: filters, belts, and maintenance kits cross-referenced to your model.
Specifications
| Tire Type | R1 Ag, R3 Turf, R4 Industrial |
