Mow it and move it without changing machines

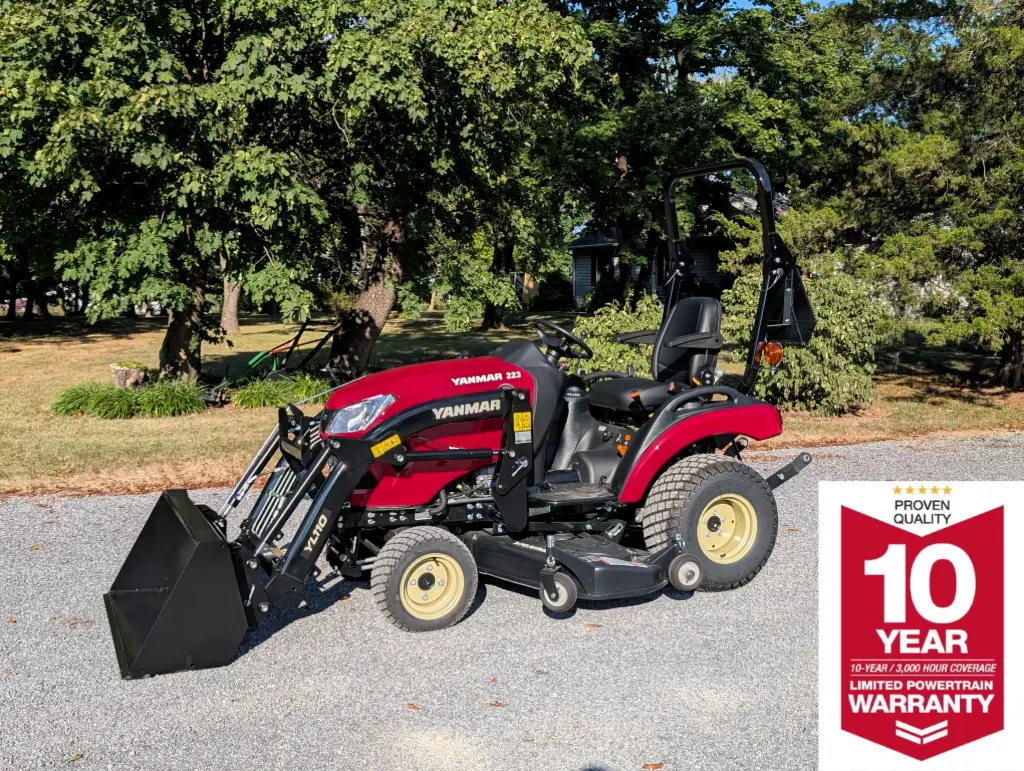

This is the SA223 configured the way most small-acreage owners actually use a tractor: a YL110 front loader on the nose and a 60-inch M60 mid-mount mower underneath. Mow the yard on Saturday, pull the deck for gravel and mulch on Sunday. One machine, one payment, one place to bring it for service.
Power comes from a 21.5-horsepower 3TNM74F three-cylinder diesel driving a dual-range hydrostatic transmission. At 47.3 inches wide with a 7.87-foot turning radius, it gets through gates and trims close around trees and beds.
The mower deck
The M60 is a ground-following deck, so it floats with the contour instead of scalping the high spots. Three blades, a 60-inch cutting width, and cutting heights adjustable from 1 to 4 inches. It runs off the tractor's independent mid-PTO at 2,057 RPM, which means engaging or stopping the deck doesn't involve the ground drive at all.
The loader
The YL110 lifts 825 lb at the pivot pin, breaks out at 1,342 lb, and reaches 71 inches at full height with a 48-inch bucket. It quick-attaches without tools.
Out back, the Limited Category 1 hitch lifts 660 lb at 24 inches behind the lift point with true position control, and the rear PTO turns 554 RPM on 15.6 HP.
Choosing your tires
Because this configuration spends real hours on finished ground, R3 turf tires are the common choice. They spread weight and are kinder to lawn. R4 industrial tires make more sense if you're mowing rough pasture and the loader sees gravel and debris. Both are available. Tell us which describes your ground.
Yanmar SA223 specifications
- Engine: Yanmar 3TNM74F, 3-cylinder liquid-cooled diesel, 60.6 cu in (0.99 L)
- Power: 21.5 HP gross, 19.4 HP net at 3,200 RPM
- Transmission: Hydrostatic, dual range, twin-pedal, selectable 4WD
- Mower (M60): 60 in cutting width, 3 blades, 1 to 4 in cut height, ground-following
- Loader (YL110): 825 lb lift, 1,342 lb breakout, 71 in lift height, 48 in bucket
- PTO: 15.6 HP independent, rear 554 RPM, mid 2,057 RPM
- Three-point hitch: Limited Category 1, 660 lb at 24 in behind lift point
- Differential lock: Standard, foot-pedal engaged
- Fuel capacity: 6.1 gallons. Turning radius: 7.87 ft
- Weight: 1,537 lb with ROPS and R4 tires. The deck adds 284 lb
What will it cost per month?
The payment calculator on this page gives a quick monthly estimate, and building yours shows live payment options across terms and down payments. Submitting sends a quote request, and we'll follow up with your pricing. Payment figures are estimates, subject to credit approval.
Buying an SA223 in central Pennsylvania
Green Spring Tractor is a Yanmar dealer at 846 Greenspring Road in Newville, Pennsylvania, serving Cumberland County and the surrounding area. Every new Yanmar tractor is assembled in Adairsville, Georgia. Coverage runs 24 months or 2,000 hours on the machine and 10 years or 3,000 hours on the powertrain for non-commercial use.
Call 717-776-4040. Tell us your acreage and how much of it you mow, and we'll tell you whether the 60-inch deck is right or whether you want to step up to the SA325.
Already own one? Browse genuine parts for the Yanmar SA223, including mower blades, belts, and filters.
Specifications
| Tire Type | R3 Turf, R4 Industrial |
