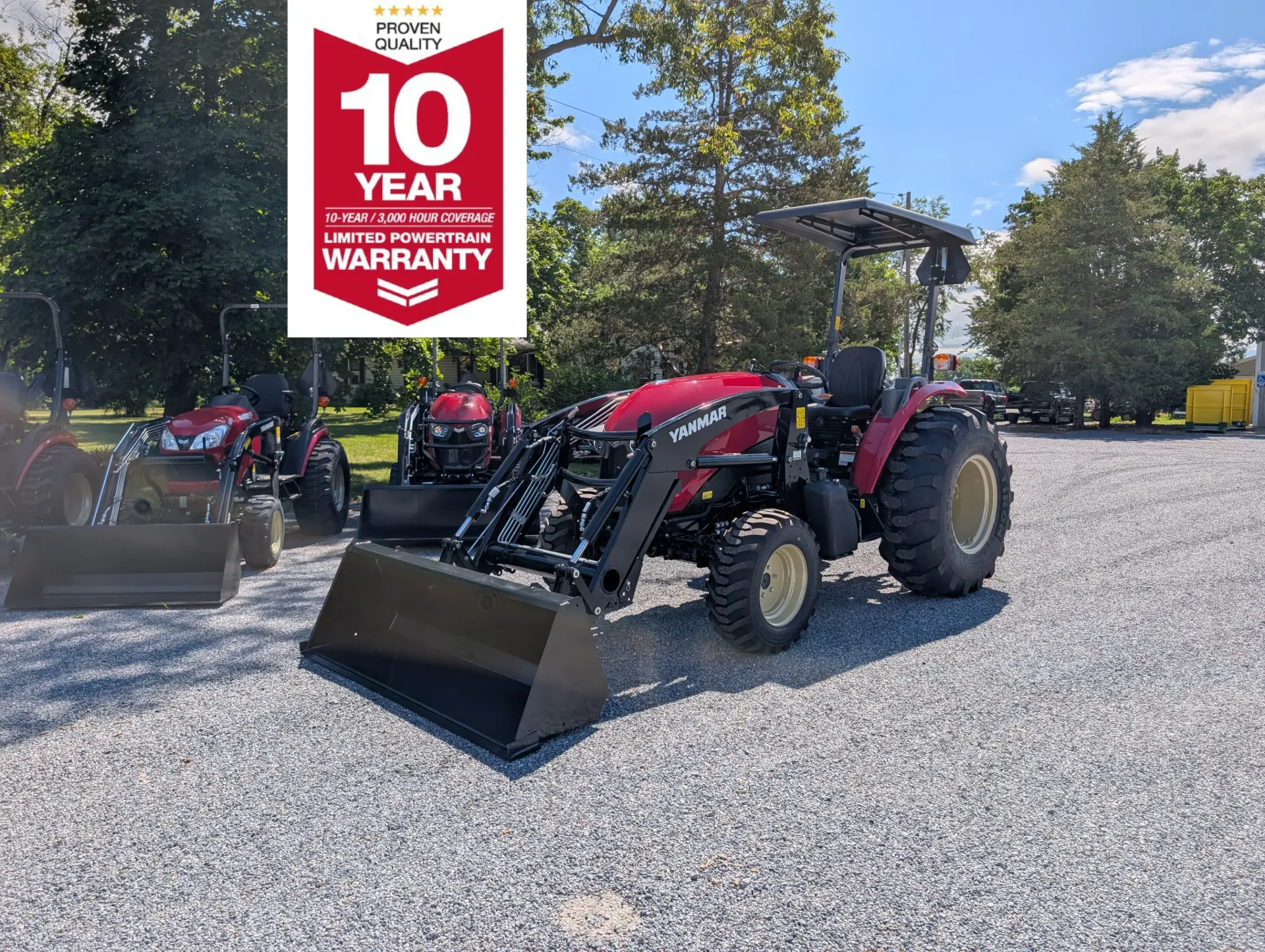

The big gear-drive Yanmar
The YM359 sits at the top of the YM3 Series with a 58.9-horsepower 4TNV98C-XNITL four-cylinder diesel of 202.4 cubic inches, putting 47 HP to the PTO. At 4,158 lb with ROPS it has the mass to use that power rather than spin the tires trying to.
Everything that makes the YM347 work carries over: the synchronized shuttle with eight speeds each way, the telescopic Category 1 and 2 hitch, 540/540E PTO, and 15.5 inches of ground clearance. The YM359 adds horsepower and hydraulic flow on top.
Where the extra power goes
Compared with the YM347, you gain 12.9 engine horsepower and 11.5 PTO horsepower. On paper that's a number. In the field it's the difference between a five-foot cutter working and a seven-foot cutter working, or between a baler that keeps up and one that makes you slow down at the heavy windrows. Implement hydraulic flow also rises to 10.2 GPM, so a loader and a rear implement can both be fed without one starving the other.
If your implements are five feet and under, the YM347 saves you money. Past that, this is the machine.
The loader
The YL605 lifts 2,500 lb at the pivot pin to 113 inches, with 3,047 lb of breakout force 500 mm forward and a 72-inch bucket holding 10.9 cubic feet. Dump clearance is 87.6 inches. Skid-steer quick attach, a bucket level indicator, and a grille guard are standard, and a third-function valve is available for a grapple.
Hitch and implements
The three-point hitch accepts Category 1 and Category 2 attachments, lifting 3,190 lb at the lower links and 2,750 lb at 24 inches behind. Telescopic lower link ends make hooking up a one-person job. Pin-style heavy-duty sway bars keep everything where you put it.
Yanmar YM359 specifications
- Engine: Yanmar 4TNV98C-XNITL diesel, 202.4 cu in
- Power: 58.9 HP engine, 47.0 HP PTO
- Transmission: Synchronized shuttle, 8 forward / 8 reverse, dry single-plate clutch
- Top speed: 18.5 mph
- PTO: 540 / 540E, independent
- Three-point hitch: Category 1 and 2, telescopic lower links, 3,190 lb standard, 2,750 lb at 24 in
- Loader (YL605): 2,500 lb lift at pivot pin, 113 in lift height, 72 in bucket, 10.9 cu ft
- Hydraulics: 10.2 GPM implement, 5.7 GPM steering, 15.9 GPM total
- Remotes: One standard, second optional
- Fuel capacity: 13.2 gallons
- Ground clearance: 15.5 in. Wheelbase: 77.5 in
- Weight: 4,158 lb with ROPS
- Standard: Canopy, deluxe suspension seat, full flat floor, cup holder
- Also fits: B85 backhoe, rotary cutter, box scraper, grading scraper, disc harrow, pallet forks
What will it cost per month?
The payment calculator on this page gives a quick monthly estimate, and building yours shows live payment options across terms and down payments. Submitting sends a quote request, and we'll follow up with your pricing. Payment figures are estimates, subject to credit approval.
Buying a YM359 in central Pennsylvania
Green Spring Tractor is a Yanmar dealer at 846 Greenspring Road in Newville, Pennsylvania, serving Cumberland County and the surrounding area. Every new Yanmar tractor is assembled in Adairsville, Georgia, with parts shipped from that same facility. Coverage runs 24 months or 2,000 hours on the machine and 10 years or 3,000 hours on the powertrain for non-commercial use.
Call 717-776-4040 and tell us the widest implement you run. That number decides between this and the YM347 faster than anything else on the spec sheet.
Already own one? Browse genuine parts for the Yanmar YM359: filters, belts, and maintenance kits cross-referenced to your model.
Specifications
| Tire Type | R1 Ag, R3 Turf, R4 Industrial |
