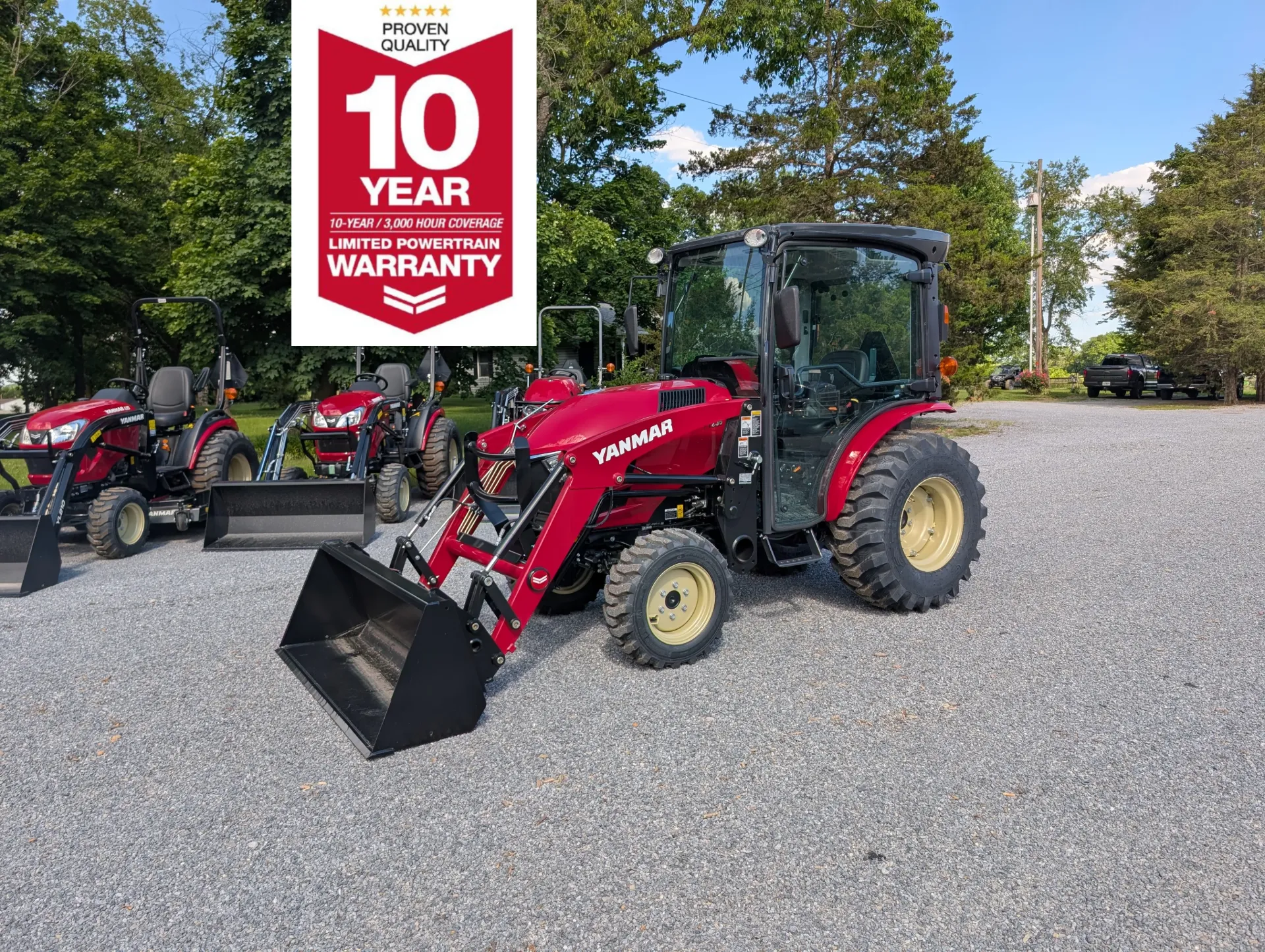

A compact tractor you can work in year round
The YT235C is built around one idea: a factory cab with heat and air conditioning, designed by Yanmar rather than bolted on afterward. That changes what the machine is for. Snow in February and dust in August stop being reasons to put the job off, and a sealed cab is quieter than a set of ear muffs over an open platform.
Power is a 34.2-horsepower 3TNV88C three-cylinder liquid-cooled diesel, naturally aspirated, delivering 27 HP at the PTO. The hydrostatic transmission uses dual touch pedals across three ranges.
Controls that reduce the workload
Third-function valve control is integrated into the joystick, so running a grapple doesn't mean taking a hand off the loader. The PTO is one-touch electro-hydraulic and independent, engaging without a separate lever routine, and the three-point hitch has true position control so implements return to the same depth every pass.
Dual hydraulic pumps mean steering never robs the implement circuit: 7.1 GPM to implements and 4.1 GPM to steering, both at 2,800 RPM.
The loader
The YL310 lifts 1,300 lb at the pivot pin to a maximum height of 84 inches, with 2,105 lb of breakout force at the pins. The 60-inch bucket holds 8.48 cubic feet and uses a skid-steer style quick attach, so attachments from the wider skid-steer world will mount. A grille guard is standard.
Mower and backhoe options
A 60-inch drive-over mid-mount mower is available, with a fabricated 10-gauge shell, side discharge, ground-following mounting, and cutting heights from 1 to 4 inches. Drive-over means you don't crawl under the tractor to mount it.
The B75 backhoe digs 90 inches deep on a 2-foot flat bottom, swings through 180 degrees, and offers buckets from 9 to 24 inches.
Yanmar YT235C specifications
- Engine: Yanmar 3TNV88C Tier 4, 3-cylinder liquid-cooled diesel, 100.1 cu in
- Power: 34.2 HP gross, 27 HP PTO at 2,800 RPM
- Transmission: Hydrostatic, dual touch pedal, 3 ranges, selectable 4WD
- Cab: Factory cab with heat and air conditioning
- PTO: Rear 540 RPM, mid 2,013 RPM, one-touch electro-hydraulic independent
- Three-point hitch: Category 1, 2,205 lb standard, true position control
- Loader (YL310): 1,300 lb lift at pivot pin, 84 in lift height, 60 in bucket, 8.48 cu ft
- Hydraulics: 7.1 GPM implement, 4.1 GPM steering, dual pumps
- Differential lock: Foot pedal engagement. Wet disc brakes
- Fuel capacity: 7.4 gallons
- Ground clearance: 10.8 in with R4 tires
- Weight: 2,910 lb with cab, R4 tires, full fluids
- Options: 60 in drive-over mid-mount mower, B75 backhoe, third-function valve
What will it cost per month?
The payment calculator on this page gives a quick monthly estimate, and building yours shows live payment options across terms and down payments. Submitting sends a quote request, and we'll follow up with your pricing. Payment figures are estimates, subject to credit approval.
Buying a YT235C in central Pennsylvania
Green Spring Tractor is a Yanmar dealer at 846 Greenspring Road in Newville, Pennsylvania, serving Cumberland County and the surrounding area. Every new Yanmar tractor is assembled in Adairsville, Georgia, with parts shipped from that same facility. Coverage runs 24 months or 2,000 hours on the machine and 10 years or 3,000 hours on the powertrain for non-commercial use.
Call 717-776-4040. A cab is the single upgrade owners tell us they'd buy again first, and it's also the one worth sitting in before you decide.
Already own one? Browse genuine parts for the Yanmar YT235C: filters, belts, cab filters, and maintenance kits cross-referenced to your model.
Specifications
| Tire Type | R1 Ag, R3 Turf, R4 Industrial |
