Loader on the front, finish deck underneath

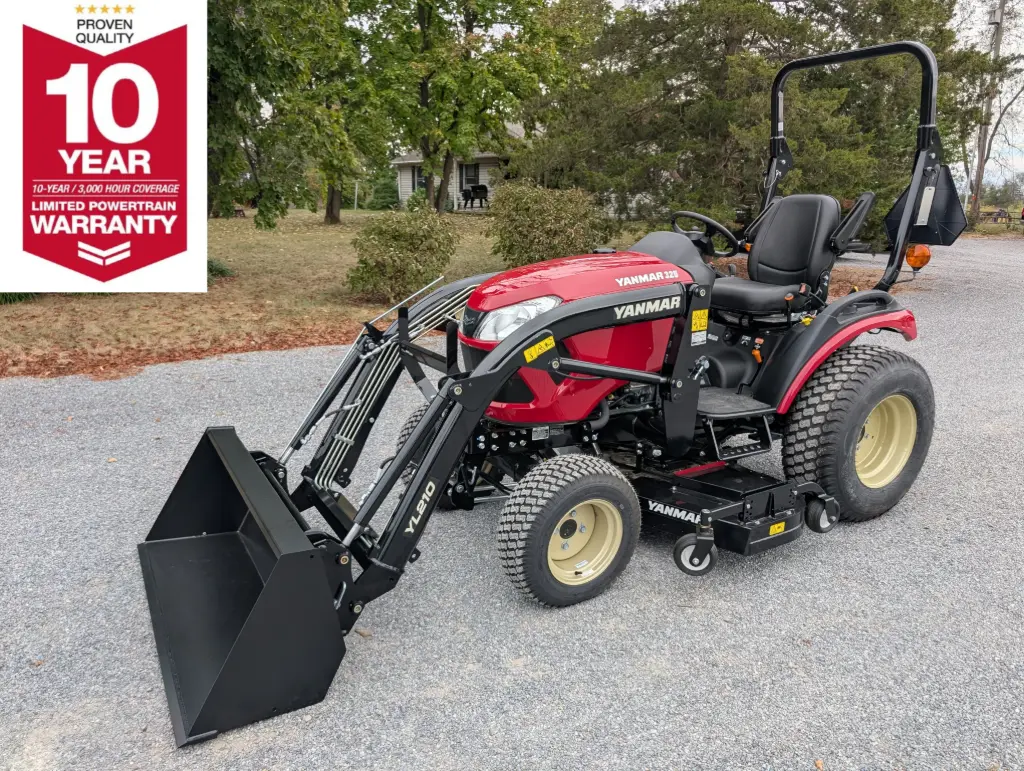

This is the SA325 set up to cover both halves of property work. A YL210 quick-attach loader handles gravel, mulch, and firewood. A 60-inch M60 mid-mount mower handles the lawn. The deck comes off without tools when you need the ground clearance, and goes back on when the grass does.
Underneath is Yanmar's 23.9-horsepower 3TNV80F three-cylinder diesel with a dual-range hydrostatic transmission and twin pedals, the layout that makes constant direction changes painless.
The mower deck
The M60 is ground-following, so it tracks the contour rather than scalping rises. Three blades, a 60-inch cut, and heights adjustable from 1 to 4 inches. It runs off the independent mid-PTO at 2,057 RPM, so the deck starts and stops without touching the ground drive.
The loader
The YL210 lifts 1,200 lb at the pivot pin, breaks out at 2,090 lb, and reaches 79 inches at full height with a 53-inch bucket holding 5.65 cubic feet. Rear implements get a Limited Category 1 hitch rated 1,209 lb at 24 inches behind the lift point, plus two rear remote valves and a 12V outlet as standard equipment.
Choosing your tires
R3 turf tires are the usual answer when the machine spends real hours on finished lawn. R4 industrial tires suit rougher pasture and heavier loader duty. Both are offered on this configuration. Describe your ground and we'll point you at the right one.
Yanmar SA325 specifications
- Engine: Yanmar 3TNV80F, 3-cylinder liquid-cooled diesel, 77.2 cu in (1.27 L)
- Power: 23.9 HP gross, 21.7 HP net at 3,200 RPM
- Transmission: Hydrostatic, dual range, twin-pedal, selectable 4WD
- Mower (M60): 60 in cutting width, 3 blades, 1 to 4 in cut height, ground-following
- Loader (YL210): 1,200 lb lift, 2,090 lb breakout, 79 in lift height, 53 in bucket
- PTO: 18.1 HP independent, rear 554 RPM, mid 2,057 RPM
- Three-point hitch: Limited Category 1, 1,209 lb at 24 in behind lift point
- Hydraulics: 4.3 GPM implement pump, 2,429 PSI, two rear remotes standard
- Fuel capacity: 6.1 gallons. Turning radius: 8.5 ft
- Weight: 1,715 lb with ROPS and R4 tires. The deck adds 363 lb
What will it cost per month?
The payment calculator on this page gives a quick monthly estimate, and building yours shows live payment options across terms and down payments. Submitting sends a quote request, and we'll follow up with your pricing. Payment figures are estimates, subject to credit approval.
Buying an SA325 in central Pennsylvania
Green Spring Tractor is a Yanmar dealer at 846 Greenspring Road in Newville, Pennsylvania, serving Cumberland County and the surrounding area. Every new Yanmar tractor is assembled in Adairsville, Georgia. Coverage runs 24 months or 2,000 hours on the machine and 10 years or 3,000 hours on the powertrain for non-commercial use.
Call 717-776-4040 with your acreage and we'll tell you whether this is the right deck size for it.
Already own one? Browse genuine parts for the Yanmar SA325, including mower blades, belts, and filters.
Specifications
| Tire Type | R3 Turf, R4 Industrial |
